Which NVIDIA RTX 6000 Is Right for You?

Choosing an RTX 6000 GPU isn't quite as straightforward as it might seem. The name "RTX 6000" now spans multiple cards across two architectures – the NVIDIA RTX 6000 Ada, as well as three newer Blackwell-based variants built for very different workloads. The four GPUs share some impressive fundamentals, but their performance profiles and a few important design differences set them apart.

Today we're looking at these NVIDIA RTX 6000 GPU options, what they're built for, and how to decide which one best fits your needs. So let's get into it!

The RTX 6000 Family at a Glance

For starters, here's a brief overview of the four GPU models in the RTX 6000 lineup:

• RTX 6000 Ada Generation – An enthusiast-class professional graphics card with solid all-around performance.

• RTX PRO 6000 Blackwell Workstation Edition – A full-power 600W desktop card, best used for single-GPU high-throughput workflows.

• RTX PRO 6000 Blackwell Max-Q Workstation Edition – Basically the same hardware as the standard Workstation Edition above, but with a few design differences that make it better suited for multi-GPU setups.

• RTX PRO 6000 Blackwell Server Edition – A passive-cooled variant designed for rackmount systems and high-density environments.

Next, we'll break down each GPU in more detail, then wrap up with some benchmarks and a side-by-side comparison table to help guide your decision.

RTX 6000 Ada Generation: Solid and Dependable

The RTX 6000 Ada is the previous-generation flagship graphics card, and it still holds its own as a solid, versatile workstation GPU. Built on the Ada Lovelace architecture, it delivers strong performance for enhanced content creation and light-to-moderate AI training.

Overall, it's a well-rounded option. Featuring 48GB of GDDR6 ECC memory, a respectable 18,176 CUDA cores, up to 91.1 TFLOPS of single-precision performance, and 300W TDP, the RTX 6000 Ada can handle complex tasks and multi-application workflows without the more extreme price or power demands of a Blackwell-class GPU. It remains dependable for many professional use cases, especially if your projects don't require cutting-edge AI acceleration.

The RTX 6000 Ada Generation may be the right choice for you if:

Your workloads span creative applications, 3D tools, and mixed GPU tasks.

You don't need 96GB of VRAM but still want professional-grade stability and performance.

You're looking for a more cost-effective alternative to Blackwell for workstation use.

RTX PRO 6000 Blackwell Workstation: Top-Tier Desktop Performance

The RTX PRO 6000 Blackwell Workstation Edition is the top-performing desktop card in this group. Built on NVIDIA's Blackwell architecture, it boasts 96GB of GDDR7 memory, a wide 512-bit memory bus, and extremely high memory bandwidth at nearly 1.8 TB/s. Plus, it has a staggering 125 TFLOPS of single-precision performance. This combination makes it well suited for the most demanding AI workloads as well as complex visualization, simulation, and neural rendering tasks.

The Workstation Edition can sustain peak performance under a 600W power load, without thermal throttling – but at the same time, it's not recommended for dense multi-GPU configurations due to its higher heat output and flow-through dual-fan design. Instead, it works best as a single GPU in a workstation setup.

The RTX PRO 6000 Blackwell Workstation Edition makes sense for you if:

You want the highest sustained throughput the RTX PRO 6000 series can deliver in a workstation, for the most demanding workloads.

You don't need to run multiple GPUs in the same system.

Your workstation has the power and cooling to support a 600W GPU.

RTX PRO 6000 Blackwell Max-Q Workstation: Multi-GPU Friendly

RTX PRO 6000 Blackwell Max-Q Workstation Edition is ideal for anyone who wants Blackwell-level performance in a cooler, more efficient card that works well in multi-GPU configurations. For simplicity's sake, let's call it the Max-Q variant as opposed to the standard Workstation Edition.

The Max-Q features the same basic hardware as the full-power standard Workstation Edition – including 96GB of GDDR7 memory, a 512-bit bus, and 1.8 TB/s memory bandwidth – but it runs at a reduced 300W TDP and uses a blower-style cooler. Its enclosed single-fan design pulls air in and then exhausts it out the rear of the chassis. With lower heat output and superior management of airflow, the Max-Q is a much better fit for multi-GPU configurations than the standard Workstation Edition.

You may want to go with the Max-Q Workstation model if:

You're looking for Blackwell-class performance and memory capacity in a cooler, more efficient card.

You can't support a 600W GPU but still need 96GB of VRAM and high bandwidth.

You plan to run 2-4 GPUs and your workloads benefit from multi-GPU scaling.

RTX PRO 6000 Blackwell Server Edition: Scalable and Server-Ready

The RTX PRO 6000 Blackwell Server Edition is built specifically for datacenter and rackmount environments. It lacks an active cooling fan, instead relying entirely on external airflow with a passive heatsink. It can also be configured up to the full 600W power envelope – as long as your airflow solution can handle the cooling required, of course!

Like the other Blackwell variants, the Server Edition includes 96GB of GDDR7 memory and a 512-bit bus. Its memory bandwidth is slightly lower at 1.6 TB/s, compared to 1.8 TB/s on the workstation cards, but the Server Edition is still more than capable of handling large models, massive datasets, and multi-GPU workloads. What really sets it apart is its ability to deliver stable, scalable performance in high-density environments.

Choose the RTX PRO 6000 Blackwell Server Edition if:

You need stable performance for continuous workloads across large-scale multi-GPU setups.

You want Blackwell-level memory and bandwidth in a form factor designed for dense compute.

You're deploying into rackmount servers where the chassis provides adequate high-pressure airflow.

RTX 6000 Series: Performance Benchmarks

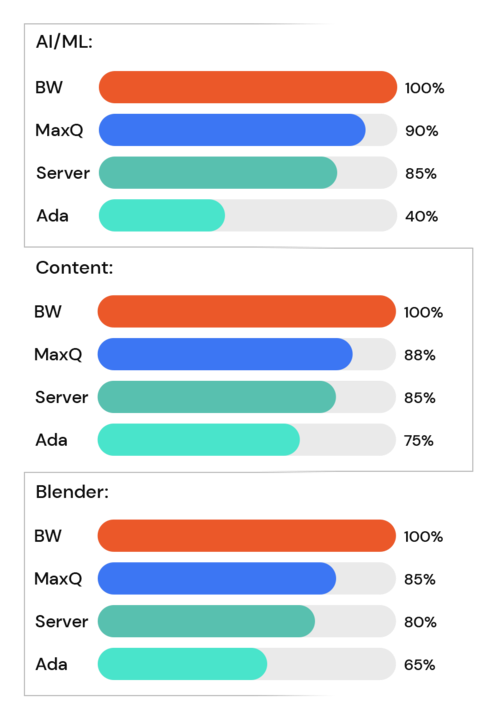

Now that we've covered design differences and use cases, let's check out how these GPUs actually perform. The benchmarks below show how each RTX 6000 variant handles real workloads, so you can get a clearer picture of what to expect in practice.

And finally, for reference, here's a side-by-side specs comparison table showing how the four GPUs stack up against each other:

Spec	RTX 6000 Ada	RTX PRO 6000 Blackwell Workstation	RTX PRO 6000 Max-Q	RTX PRO Blackwell Server Edition
Architecture	Ada Lovelace	Blackwell	Blackwell	Blackwell
VRAM	48GB GDDR6	96GB GDDR7	96GB GDDR7	96 GB GDDR7
ECC	Yes	Yes	Yes	Yes
Memory Bandwidth	960 GB/s	1,792 GB/s	1,792 GB/s	1,597 GB/s
Memory Interface	384-bit	512-bit	512-bit	512-bit
CUDA Cores	18,176	24,064	24,064	24,064
Tensor Cores	568 (4th gen)	752 (5th gen)	752 (5th gen)	752 (5th gen)
Ray Tracing Cores	142 (3rd gen)	188 (4th gen)	188 (4th gen)	188 (4th gen)
Single-Precision Performance	91.1 TFLOPS	125 TFLOPS	110 TFLOPS	120 TFLOPS (FP32)
RT Core Performance	210.6 TFLOPS	380 TFLOPS	333 TFLOPS	355 TFLOPS
Total Board Power	300W	600W	300W (power-optimized)	400–600W (configurable)
Form Factor	4.4" H x 10.5" L, dual slot	5.4" H × 12" L, dual-slot, extended height	4.4" H × 10.5" L, dual-slot	4.4" H × 10.5" L, dual-slot
Thermal (Fan Configuration)	Single-fan active	Dual-fan active	Single-fan active	No-fan passive (server chassis)
Date Released	Dec. 2022	Mar. 2025	Mar. 2025	Mar. 2025

Final Thoughts

Each RTX 6000 variant brings something different to the table. As we explored above, the right choice ultimately comes down to how you plan to use it.

To sum things up, the Ada model is solid and dependable for a broad range of workloads, while the full-power Blackwell Workstation card offers the strongest single-GPU performance. The Max-Q variant is the more practical choice for lower-power or multi-GPU setups, and the Server Edition is designed for dense deployments and continuous workloads.

At the same time, these GPUs aren't exactly budget-friendly. That's where Vast.ai comes in. Our cloud GPU rental platform allows you to access this level of performance on demand, eliminating the upfront cost of purchasing the hardware yourself.

With Vast, you can easily match your compute to your workload and only pay for what you use. Best of all, you'll save 5-6X on average compared to traditional cloud providers.

Ready to see what Vast.ai can do for you? Spin up an RTX 6000 GPU instance today, or explore other powerful GPU options like the A100, H200, and B200 – available right now!
