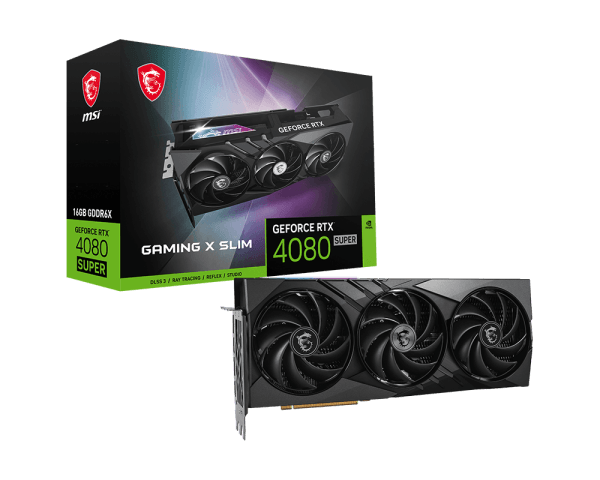

The Nvidia RTX 4080 is a high-performance graphics card released as part of Nvidia's Ada Lovelace architecture. It features advanced technologies designed to deliver exceptional gaming experiences and professional-grade performance for creative applications.
You can rent the RTX 4080 by the hour at a price of $0.24/hr. Try the RTX 4080 now.
Category | Detail |
---|---|
GPU Name | AD103 |
GPU Codename | AD103 |
Architecture | Ada Lovelace |
GPCs | 7 |
TPCs | 38 |
SMs | 76 |
CUDA Cores / SM | 128 |
CUDA Cores / GPU | 9728 |
Tensor Cores / SM | 4 (4th Gen) |
Tensor Cores / GPU | 304 (4th Gen) |
OFA TOPS | 305 |
RT Cores | 76 (3rd Gen) |
GPU Boost Clock (MHz) | 2505 |
Peak FP32 TFLOPS (non-Tensor) | 48.7 |
Peak FP16 TFLOPS (non-Tensor) | 48.7 |
Peak BF16 TFLOPS (non-Tensor) | 48.7 |
Peak INT32 TOPS (non-Tensor) | 24.4 |
RT TFLOPS | 112.7 |
Peak FP8 Tensor TFLOPS with FP16 Accumulate | 389.9/779.82 |
Peak FP8 Tensor TFLOPS with FP32 Accumulate | 389.9/779.82 |
Peak FP16 Tensor TFLOPS with FP16 Accumulate | 194.9/389.82 |
Peak FP16 Tensor TFLOPS with FP32 Accumulate | 97.5/1952 |
Peak BF16 Tensor TFLOPS with FP32 Accumulate | 97.5/1952 |
Peak TF32 Tensor TFLOPS | 48.7/97.42 |
Peak INT8 Tensor TOPS | 389.9/779.822 |
Peak INT4 Tensor TOPS | 779.8/1559.62 |
Frame Buffer Memory Size and Type | 16 GB GDDR6X |
Memory Interface | 256-bit |
Memory Clock (Data Rate) | 22.4 Gbps |
Memory Bandwidth | 716.8 GB/sec |
ROPs | 112 |
Pixel Fill-rate (Gigapixels/sec) | 280.6 |
Texture Units | 304 |
Texel Fill-rate (Gigatexels/sec) | 761.5 |
L1 Data Cache/Shared Memory | 9728 KB |
L2 Cache Size | 65536 KB |
Register File Size | 19456 KB |
Video Engines | 2 x NVENC (8th Gen), 1 x NVDEC (5th Gen) |
TGP (Total Graphics Power) | 320 W |
Transistor Count | 45.9 Billion |
Die Size | 378.6 mm2 |
Manufacturing Process | TSMC 4N NVIDIA Custom Process |
PCI Express Interface | Gen 4 |
